Sensitive Market Map Requirements

Find out what is required for your sensitive market maps

Having an up-to-date, legible and accurate orchard map is an important part of your annual registration.
Codling moth sensitive market maps are required when exporting to markets such as China, Taiwan and Japan and the information put on these maps must meet all requirements as set out in the OAP.

Maps can be printed through the Printing workflow.

Keep in mind:

• The NZAPI registration system is the source of truth for Production Sites and Management Areas. Landkind will read from this system.

• A production site is what will be registered with MPI for apples and pears that are exported under an MPI approved programme (i.e. OAP), and therefore is the primary traceability point in market. You can have multiple management areas and varieties within a production site.

• In order for a production site to be eligible for CMSM it needs to be a minimum of 1 hectare.

• A management area is a clearly identified planting of trees, managed as an entity, and may involve one or more varieties. A management area is identified on spray diaries and packhouse submissions

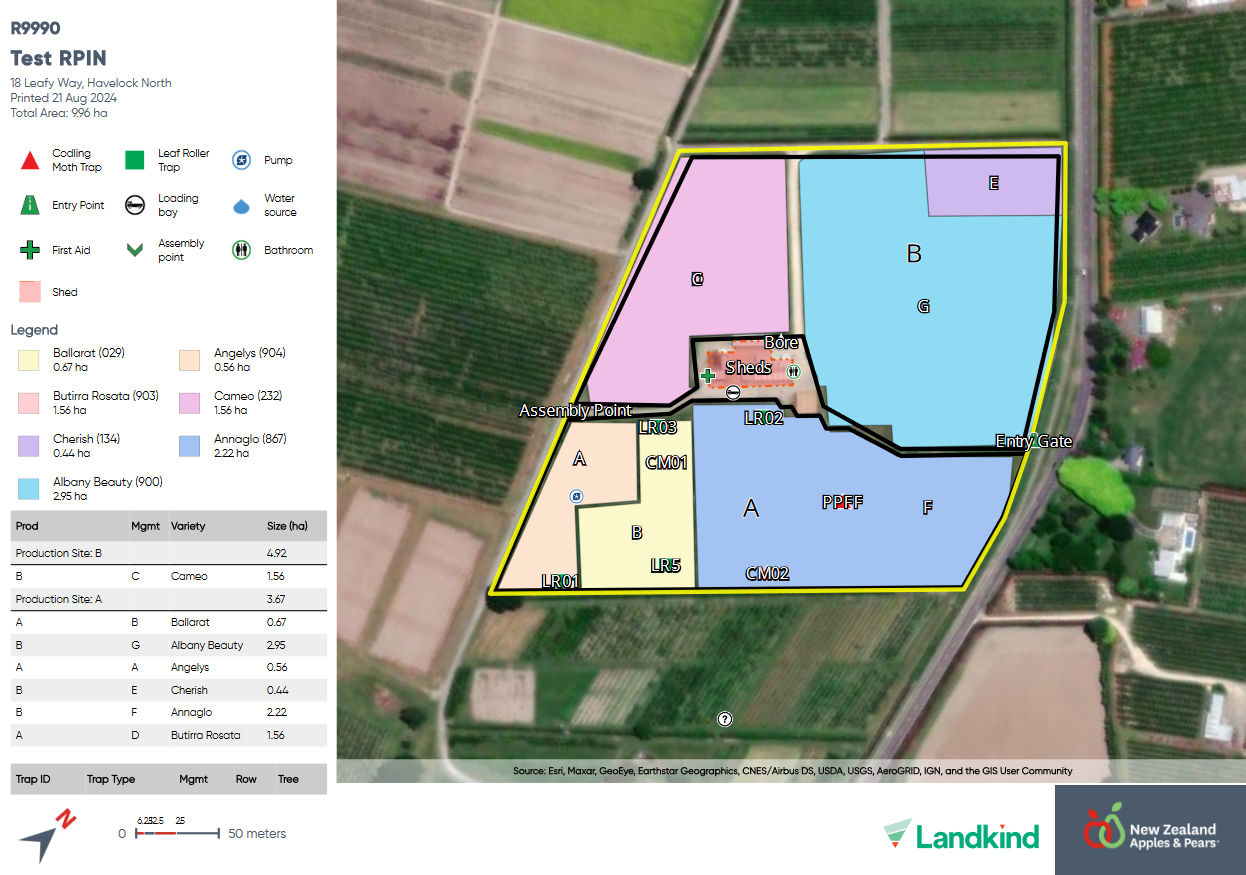

Map Requirements:

Your map needs to be accurate to pass your first CMSM audit. Please ensure you check your map annually and update it to include any changes (i.e. redevelopment).

Must be included:

• RPIN, orchard name - these are automatically populated from the NZAPI registration system.

• Address - this can be added through the Property Editor workflow

• Registered production site information:

  • Production site name (i.e. ‘A’)

  • Location of the production site

  • Size of the production site

Production Sites can be added through the Production Sites workflow and will automatically contain the name and size.

• Varieties within each production site - these can be added through the Management Areas workflow

• The position and unique identifier of all codling moth traps - these can be added through the Trap Locations workflow

• A compass showing north - this is automatically added to the map when Printing

• Orchard roads, headlands and distinctive landmarks - additional features can be added through the Property Features workflow

Highly recommended:

• Last update date - automatically added when printing.

• Any production sites that are not registered for a CMSM - all production sites registered in the NZAPI system will be pulled through and available.

• Entry point onto orchard - can be added through Property Features.

• Loading Bays - can be added through Property Features.

• Water Sources - can be added through Property Features.

• First Aid Kits - can be added through Property Features.

• Assembly Points - can be added through Property Features.

• Bathrooms - can be added through Property Features.

For further support with Registration 2024 contact – Meredith Ryan 0272 239 239 or meredith@applesandpears.nz
