Getting started with your Sunforest

Turning on the gun

Press the power button to turn the device on. The device will count down from 5 as part of the initialisation.

Ensure that the cap is fitted while the device is initialising. The device will display an error code (2 - 3) if the cap is not fitted correctly.


Changing to the correct model

Your H-100 device may come with more than one fruit mode available. Changing the mode on your device allows you to accurately perform readings on different fruit types.

To change the mode:

  1. Press and hold the ‘M' until the device beeps and ‘MODE’ begins to flash

  2. Press the arrow buttons (< >) to select the desired mode

  3. Press and hold the ‘M' until the device beeps

  4. The device will then turn off

  5. When you turn the device back on it will be set to the desired mode

Connecting to the app

To connect the device to the Landkind mobile app:

  1. Ensure that your phone has Bluetooth turned on

  2. Open the Landkind app and navigate to the property on which you will be scanning fruit (1)

  3. Select the Sunforest workflow on the screen and turn on the Sunforest device

When the Sunforest device is turned on, the Bluetooth in the device will automatically enable

  1. The mobile app will now search for the Sunforest device (2). Connecting can take up to 15 seconds.

  2. When the app has paired with the device, the bottom button will turn green (3)

  3. You can now capture readings through the app

App Screen-20240118-033340.jfif

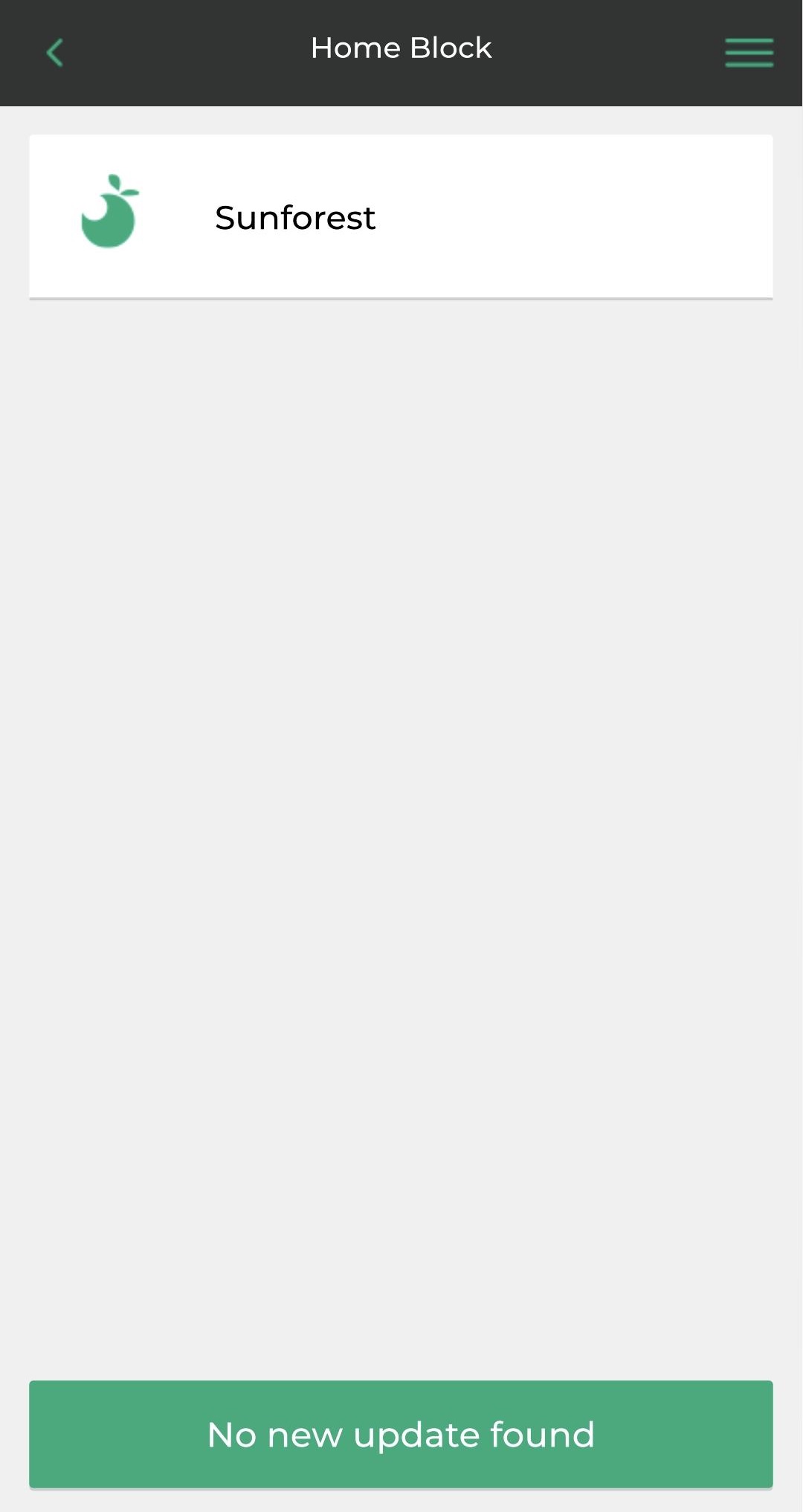

1: App on property screen prior to selecting the workflow

App searching-20240118-034347.png

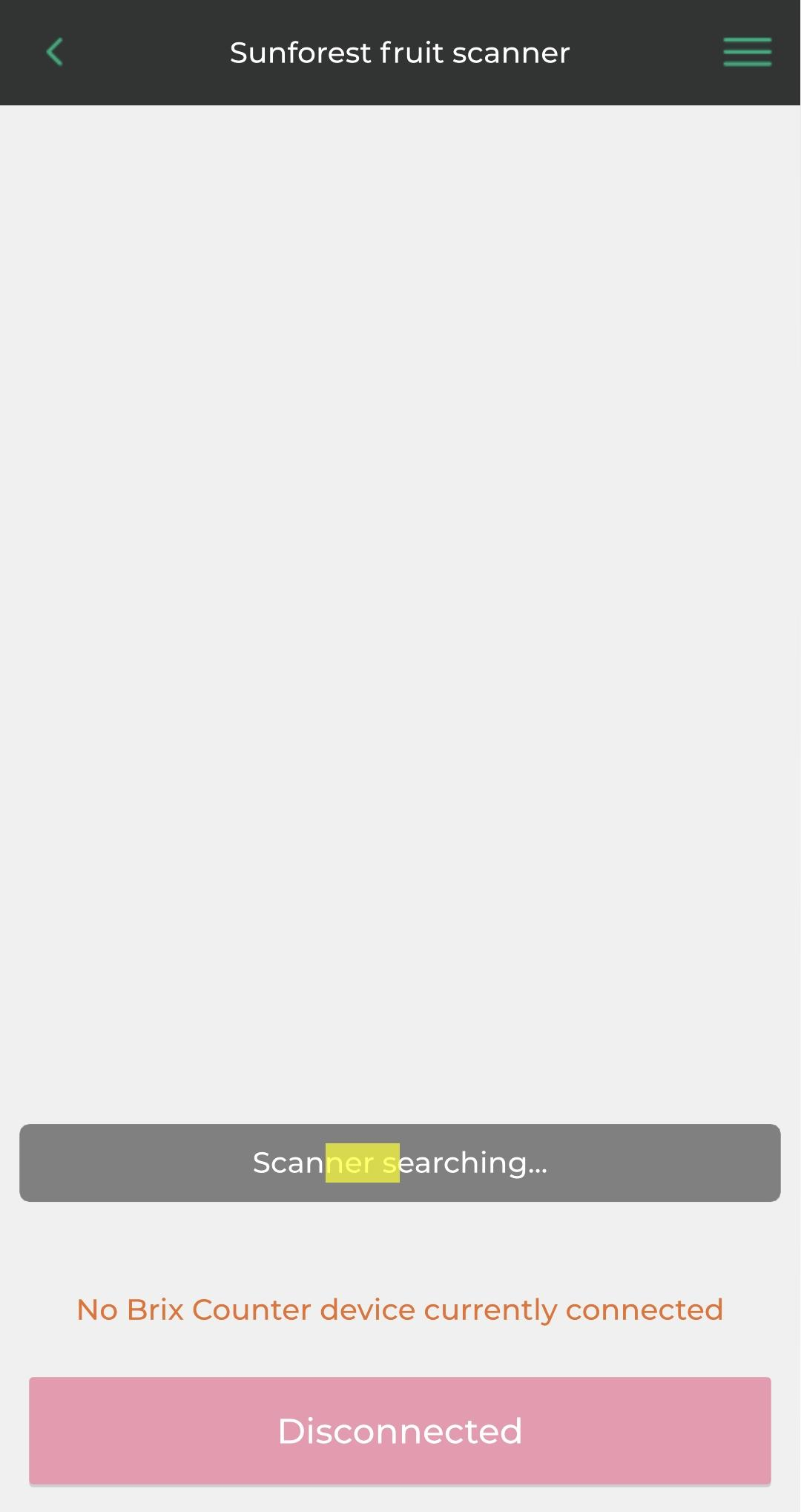

2. App searching for device after workflow is selected

App paired-20240118-034524.png

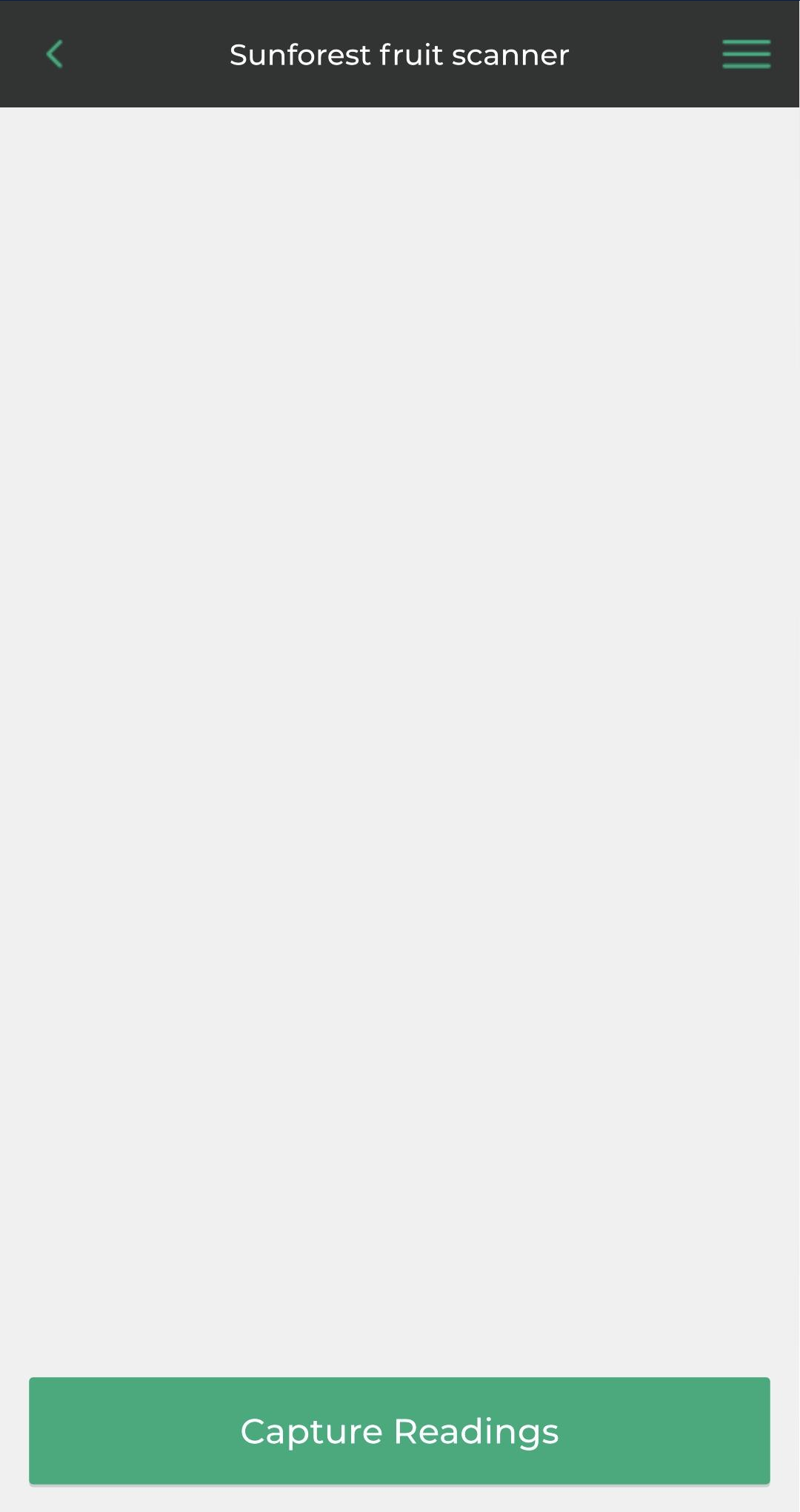

3. App after pairing with the device

Measuring fruit

To capture readings with the device:

  1. Ensure the device is turned on and set to the correct mode

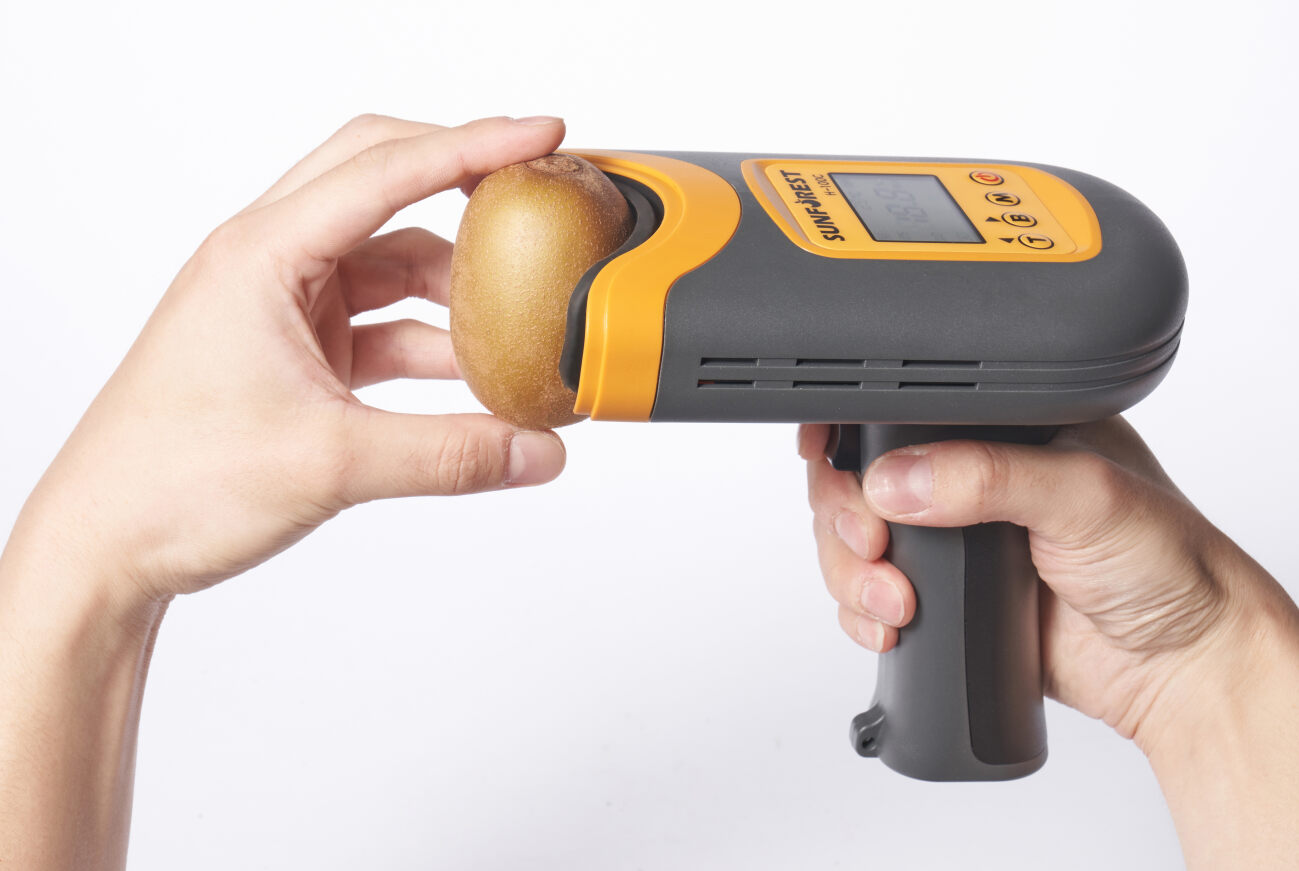

  2. Place a fruit firmly and still over the sensor section so that it makes close contact with the rubber molding.

For best results, keep the sun in front of you while performing readings and if there is strong sunlight present, use the rubber sunlight shield

  1. Press the trigger of the device. The measuring process takes two seconds with two beep sounds.

  2. The results will be displayed on both the device screen and in the mobile app.


We recommend utilising the shoulder strap for comfort and ease of use

Syncing your results

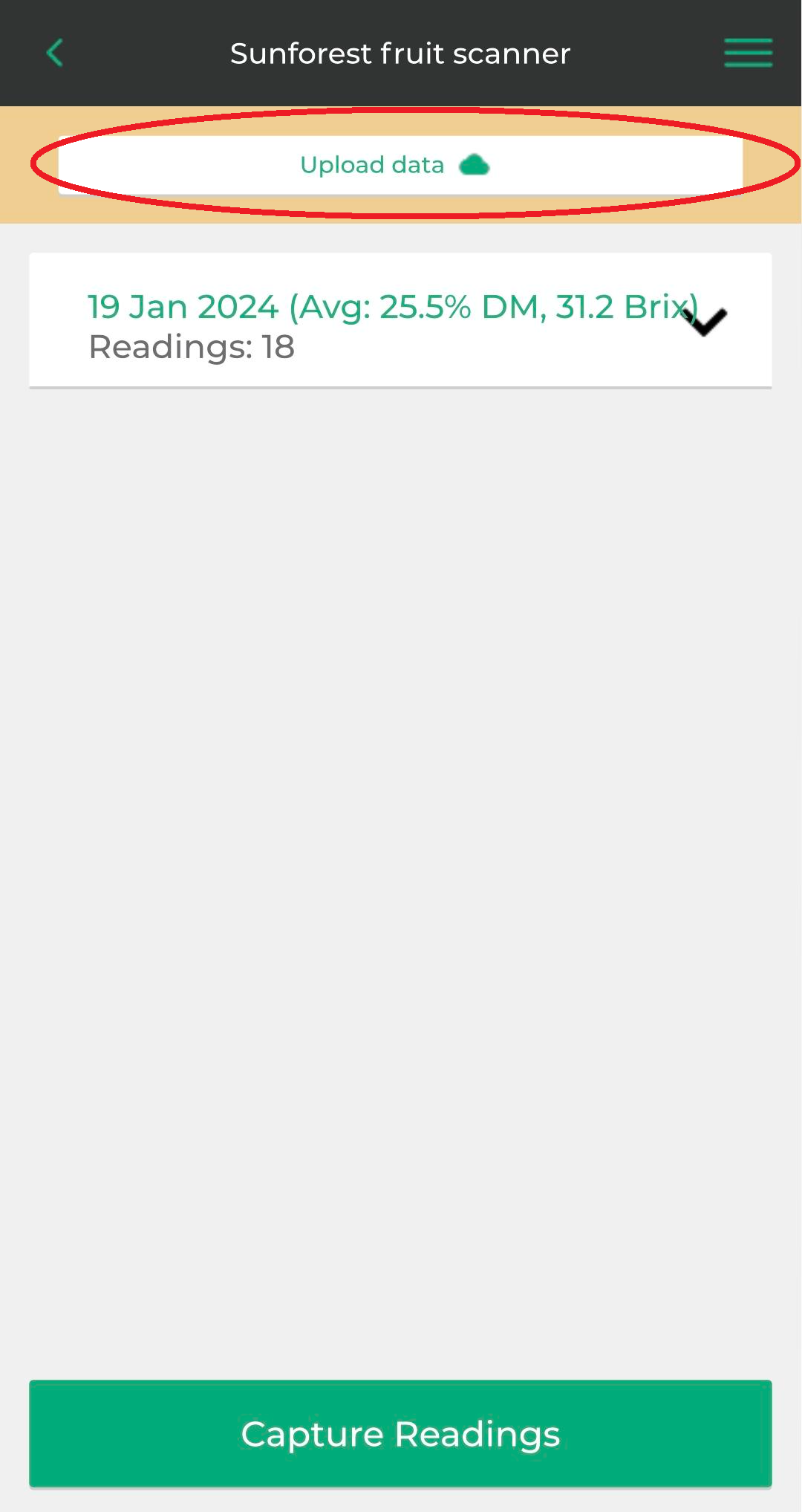

Once you have captured your readings, you can sync them to the web application by clicking the ‘Upload data’ button. Syncing your readings should only take a few seconds.


Once your readings have been synced, you can view them in the web application. Find out more about that here.
